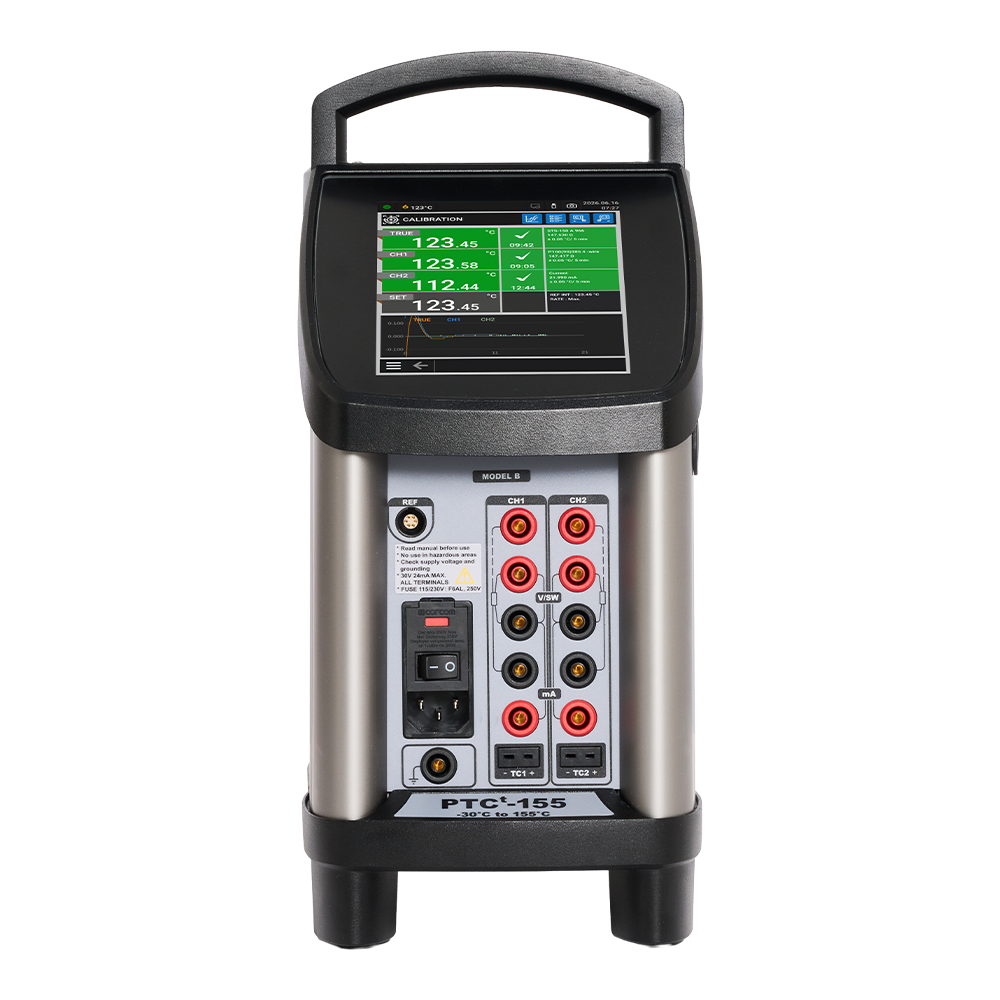

PTCt-155

SKU: N/A

Dry Well Calibrator by Ametek

Description

The PTCt Series builds on the proven PTC dry‑block temperature calibrator platform and introduces improved usability, enhanced calibration visibility, and extended functionality.

The instruments provide stable and accurate temperature control for calibration of RTDs, thermocouples, transmitters, and temperature switches in both industrial and laboratory environments.

With an updated user interface and improved workflow support, the PTCt Series enables efficient, repeatable, and well‑documented calibration tasks.

Technical Informations

The PTCt-155 distinguish itself by:
  • Temperature Range: From -30 to 155°C (-22 to 311°F).
  • High Accuracy: ± 0.18°C (± 0.32°F) Down to ± 0.06°C (± 0.11°F) using the external reference sensor. (B and C models only.)
  • Excellent Stability: ± 0.01°C (± 0.018°F)
  • Touchscreen user interface with configurable screen views
  • Graphical calibration display and remote access (Option RG – Remote & Graph)
  • Automated calibration functions including Auto Step and switch test
  • Dual sensor‑under‑test capability for parallel calibration (model B)
  • Integrated connectivity for data transfer, remote access, and documentation

Services

Accredited EN ISO/IEC 17025 calibration of the temperature block or external reference probe.

Request PTCt-155 now!
